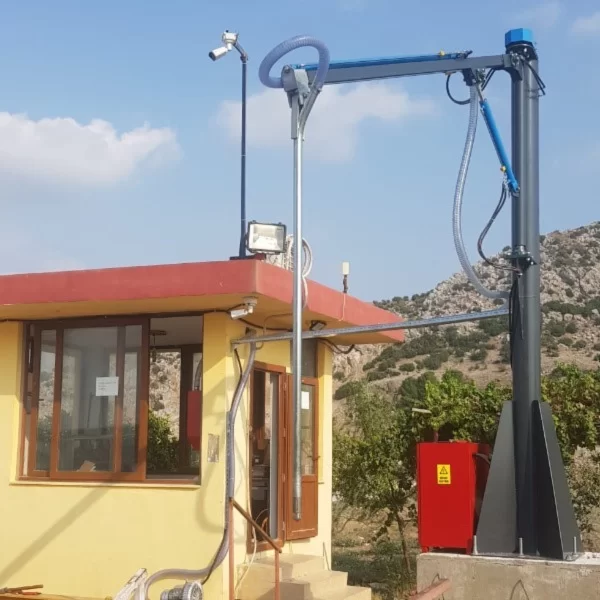

The device, with its powerful vacuum motor, can transport heavy products such as corn, beans, chickpeas as well as grains such as wheat, barley, paddy, rye, oats in 9 to 12 seconds pneumatically (vacuum) in the laboratory or sample room. collects the sample in the collection container. With the sample collection container with a transparent window on it, the sample amount can be monitored and the sample amount can be adjusted if desired. Since the sample container is not a cyclone, it has no filter. Therefore, it does not require frequent filter change. The amount of oscillation of the strong and heavy body is greatly reduced thanks to 4 flagpoles. The sampling arm (boom) of the device consists of two parts, inner and outer boom, and can be extended up to 3 booms if desired. By hydraulically removing the inner boom from the outer boom, the sampling distance is greatly increased. Thus, the device can scan an area of 11 meters in total, 5.5 meters on the left and right. This eliminates the need to mount the device very close to vehicles. In addition, even long trucks and trailers can be easily sampled without moving the vehicle. The probe length is 2.5 m. The sampling probe can move 120 degrees to the right and 120 degrees to the left, for a total of 240 degrees. Thanks to the joystick, it can be controlled both from the control room and from the side of the vehicle. The device can easily perform all movements with the joystick. The device is easy to use because it performs all right, left, up, down, forward and backward movements not with electric motors but with a much more powerful, fast, silent and long-lasting hydraulic system. The external dimensions of the device are 75x75x400 cm. The net weight of the device is 530 kg. There is a 2-year warranty and 10-year spare parts supply warranty, excluding errors in use.
